OrCAD X MCADx import

OrCAD ® X EDM provides a comprehensive collaboration and management environment for OrCAD X Capture users, perfectly embedded in the OrCAD X Capture operating environment. OrCAD X EDM allows multiple engineers to utilize team collaboration to shorten development time, seize market opportunities, and eliminate the challenges of managing dispersed design data.

Product Details

Product Highlights

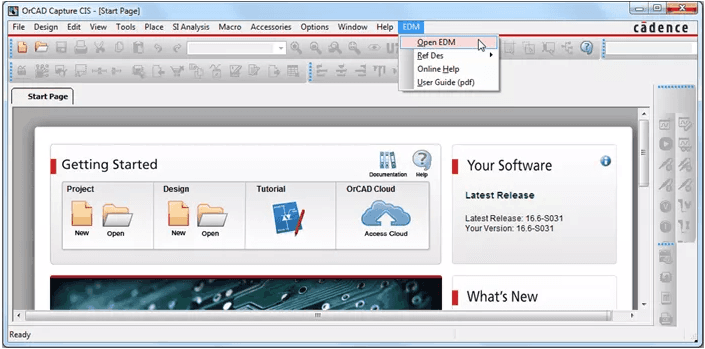

Seamless integration with OrCAD X Capture

Built directly into the OrCAD X Capture environment, it can quickly start, run, and is easy to use.

Collaboration in team design projects

View and manage projects, and assign schematic tasks to your engineering team through a centralized storage method that allows for user access permissions to be set through the web.

Design data locking

Automatically lock the page being edited by a certain user, and other users can only access the page in read-only mode.

Timely tracking and communication

Mark and store every downloaded and updated page in the team design project, allowing team members to have a comprehensive understanding of the modified content, modified members, and reasons for the project changes.

Complete historical records

Keeping a complete record of every uploaded modification at the page and project level makes it very easy to trace back to previous versions.

Reuse

Convenient search and reuse of validated design solutions from previous designs, greatly reducing the time required for the product.
