OrCAD X Component Information Portal

OrCAD® Component Information Portal (CIP) is a comprehensiwe
OrCAD CIS database management and online component research environment. Together with OrCAD CaptureCIS, the portal enables design teams to quickly and cost-effectively realize the full benefits of a shared component database and effective component management process.

Product Details

Product Highlights

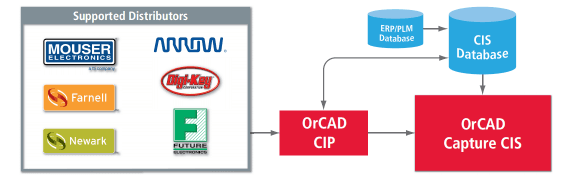

Supplier Product Integration

Directly access component parametric data for millions of parts from thousands of suppliers within OrCAD X Capture CIS in real-time

Introduction to New Parts

Support temporary part creation, allowing for continued design during approval and introduction of new parts

Complete component information

Automatically and error free download of part parameter data, such as part number, value, price, existing quantity, RoHS status, etc

Starter library and database schema

Get started quickly with the starter database, including pre configured patterns and 5000 partial starter libraries

Component Data Management

Intuitive interface for directly adding or maintaining component/parameter information of CIS database

Manage user roles

Define access permissions for users to ensure data integrity and allow them to access only the information they need
